Saunaofen EOS Zeus HD/L

EOS Zeus HD & L HD – Massive. Monumental. For large rooms.

A design for size – built to last.

The The EOS Zeus HD represents a new dimension in sauna heaters – both technically and architecturally. With a solid steel body and an impressive height of 125 cm (HD) or the reduced HDL version at 79 cm, it is consistently designed for intensive, commercial use. The heater holds up to 100 kg of sauna stones, creating a sauna experience with exceptional temperature stability – ideal for large cabins, spa facilities, and event saunas.

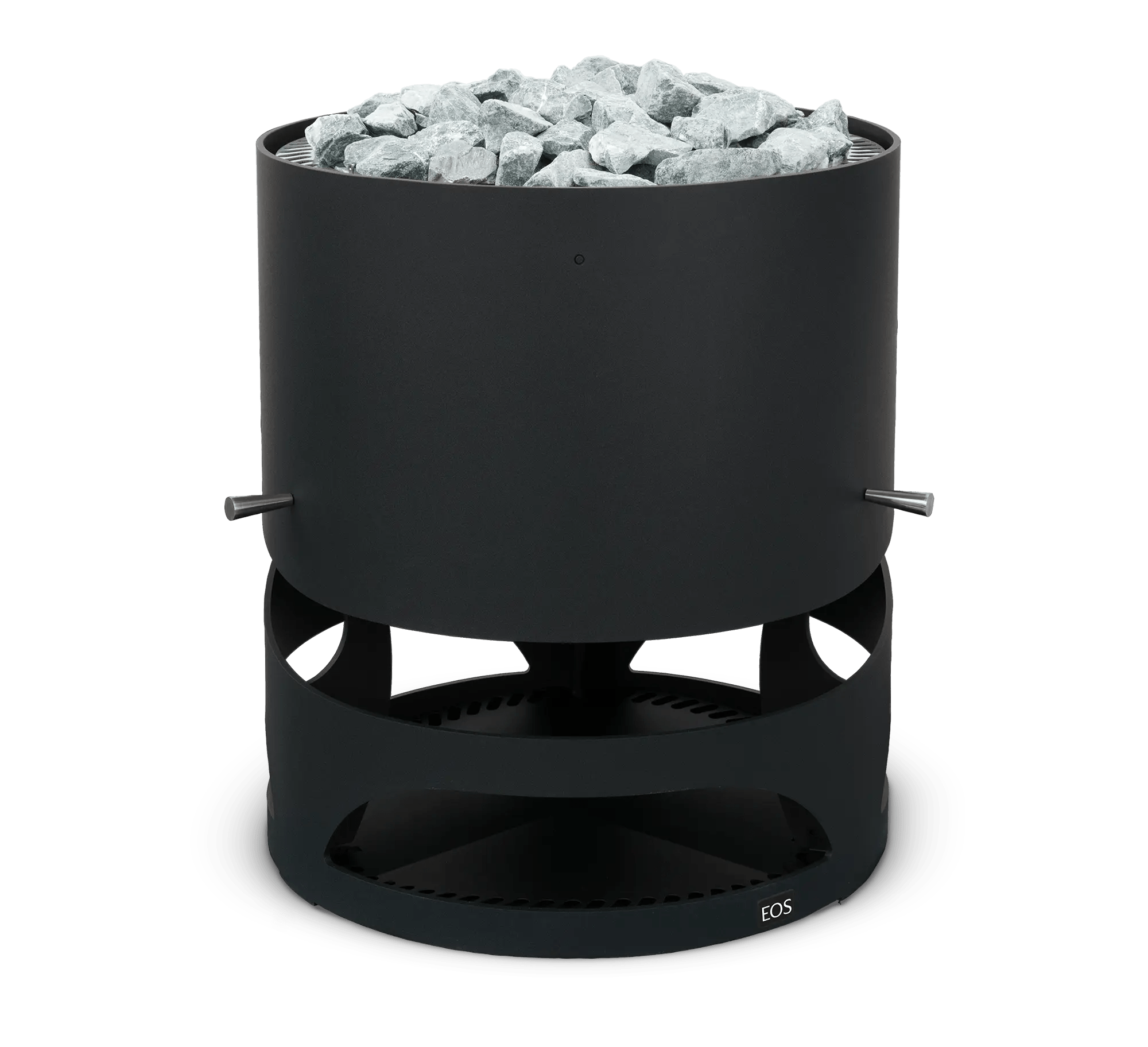

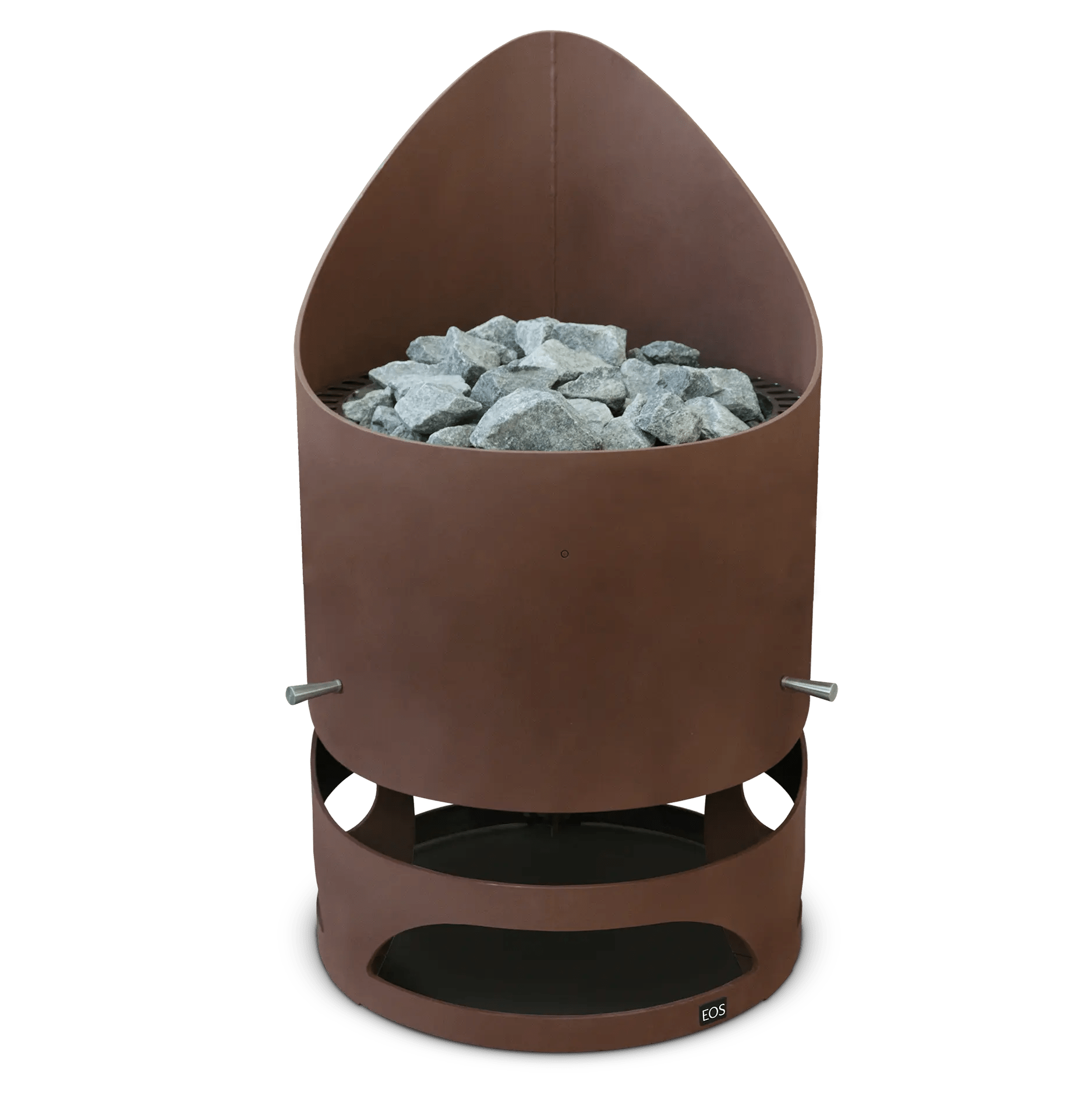

Its characteristic cylindrical shape – coated with the striking "Rust Marble" surface – makes the Zeus HD a visual anchor in the room. Anthracite pearl effect and matte black are also available upon request. The clear version, the Zeus L HD, with its linear design, emphasizes structure and tranquility – ideal for central installations with architectural impact.

Built for the extreme. Designed for the demanding.

With an output of 20.0 to 36.0 kW, the Zeus HD heats sauna cabins up to 75 m³ – reliably, powerfully, and permanently. The solid 8 mm steel outer shell ensures maximum stability, while the optimized interior improves air convection and shortens heat-up times. The integrated high-performance wiring with copper busbars was specially developed for continuous operation – a true heavy-duty system for professional use.

The laser-cut air vents and the open stone area support even heat distribution and also make the Zeus HD a visual experience.

Function meets form – with spatial effect.

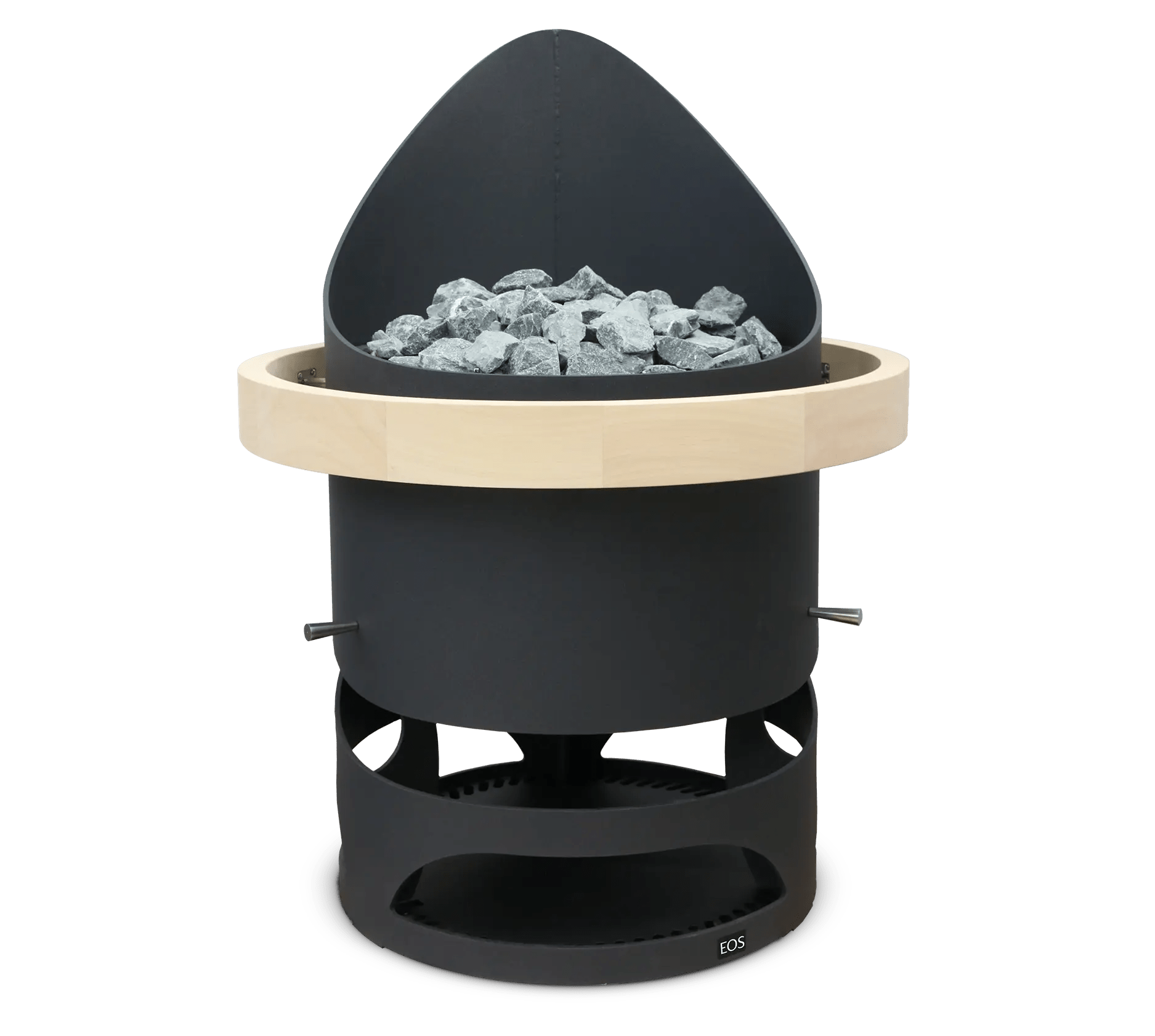

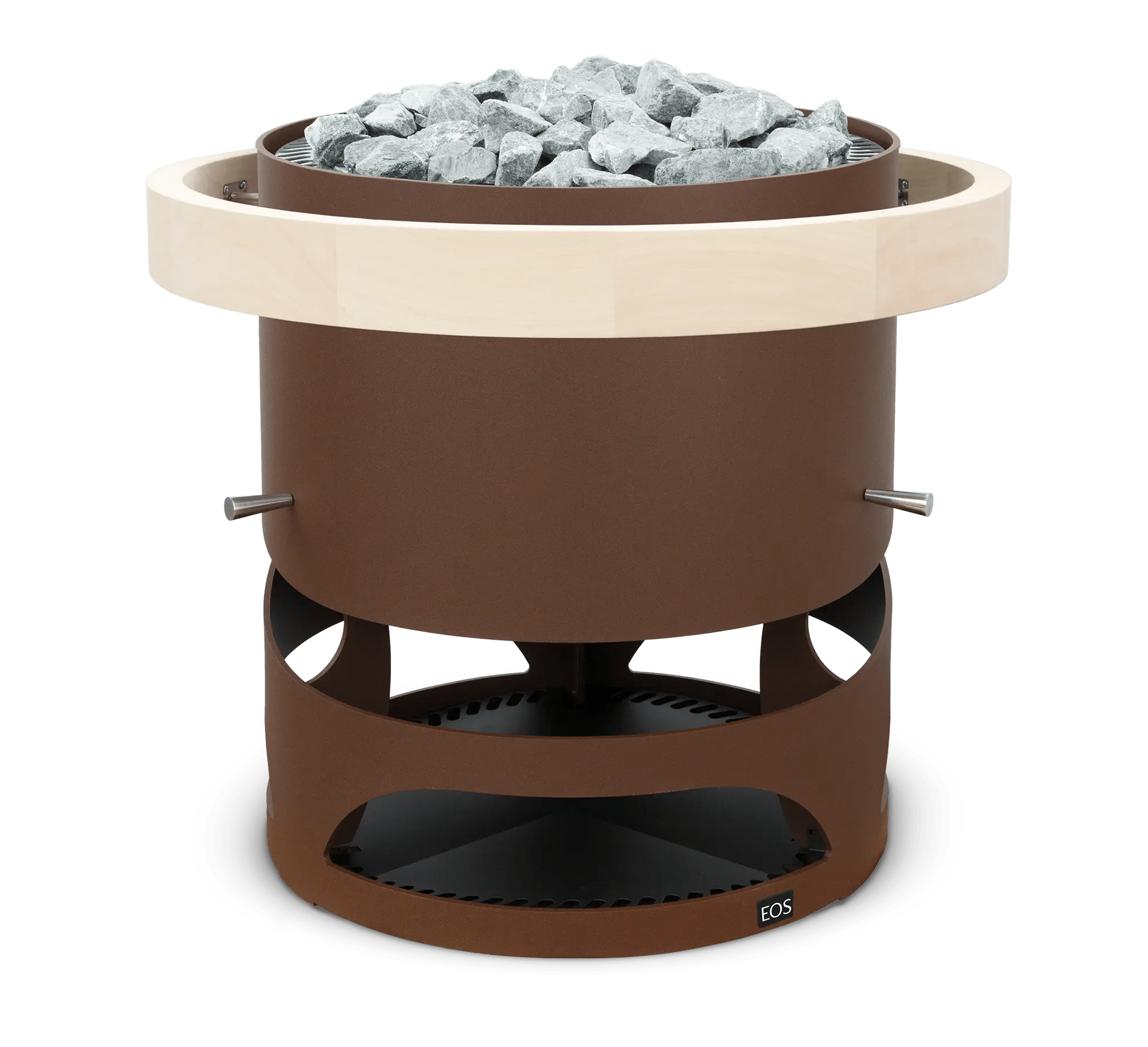

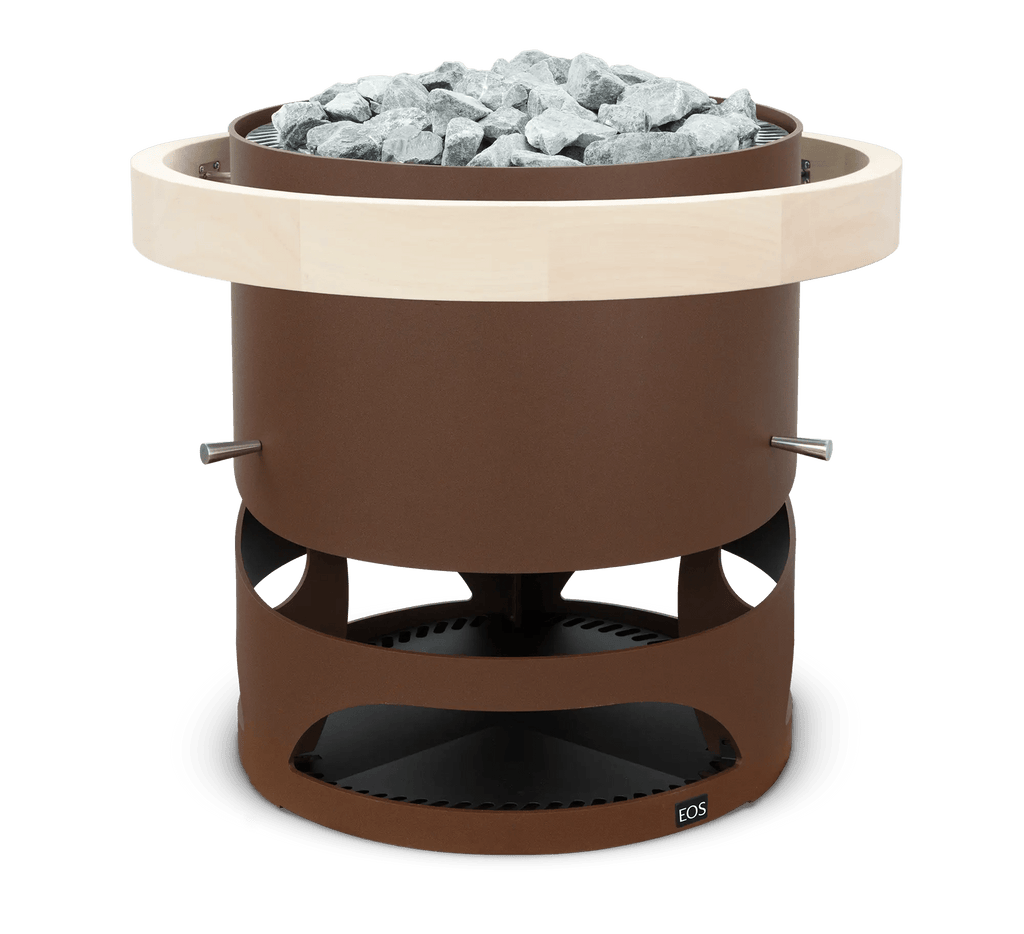

The design is rounded off by an optional, handcrafted solid wood touch guard in 270° or 360° versions – available in abachi or walnut. With a diameter of 940 mm, it underscores the stove's presence and combines safety with style.

Technical features (Zeus HD / Zeus L HD)

• Power: 20.0 / 24.0 / 30.0 / 36.0 kW

• Cabin volume: 24 – 75 m³

• Dimensions (D × H):
  Zeus HD: 70 × 125 cm
  Zeus L HD: 70 × 79 cm

• Weight (without stones): approx. 140 kg

• Stone filling: approx. 100 kg

• Material: steel, powder-coated (8 mm wall thickness)

• Colors: Rust Marble, Black matt, Anthracite pearl effect (on request)

• Connection: 400 V 3N ~ 50/60 Hz

• Scope of delivery: incl. high-performance connection cable

• LSG insurance:
  20 kW = 3×25 A (PEB 18)
  24 kW = 3×35 A (PEB 18)
  30 kW = 3×50 A (PEB 36)
  36 kW = 3×63 A (PEB 36)

• Ventilation requirement:
  20–24 kW: min. 50 × 8 cm
  30–36 kW: min. 50 × 10 cm

For large spaces. Big demands. Big impact.

The EOS Zeus HD isn't a heater for compromises—it's made for exceptional spaces, intensive use, and architectural presence. A sauna heater for people who seek character even in technology.

Ideal for spa facilities, hotel areas, event saunas and anyone who wants more than just warmth – but an experience.
